Calva supports most any JVM hosted ClojureScript environment (and some others, including SCI based, too), but shadow-cljs gets some special treatment to try to make it extra convenient to use.

With many shadow-cljs projects, Calva's connect project type shadow-cljs, is the right choice. Projects that use Leiningen or deps.edn can be used both with the Leiningen/deps.edn and shadow-cljs type, depending on configuration, see below for more on this.

shadow-cljs - browser quickstart#

Here's how you start a shadow-cljs ClojureScript REPL and connect Calva with the shadow-cljs - browser quickstart example project:

Prep:

  1. Clone the project to your machine and open its root folder in VS Code.
  2. Open a terminal and run npm install

Connect Calva:

  1. Run the command Calva: Start a Project REPL and Connect (a.k.a. Jack-in)
  2. Select project type shadow-cljs
  3. Select to start the build :app
  4. Select to connect to the build :app
  5. Wait for the build to complete
  6. Open http://localhost:8020/ in the browser
  7. Open browser.cljs file and load it in the REPL: Calva: Load/Evaluate Current File and Dependencies

Now you should be able to evaluate forms, e.g.:

  • The current form or selection with ctrl+enter, or
  • Top-level forms with alt/option+enter.

(See Code Evaluation)

shadow-cljs Runtimes#

A shadow-cljs Runtime is an instance of your app that connects to shadow-cljs. When Calva connects to a runtime, that's where your ClojureScript REPL evaluations run.

Calva <-talks to-> shadow-cljs server <-talks-to-> App (Runtime)

We call the App (Runtime) in this diagram the currently connected runtime, and sometimes the active runtime.

When working with shadow-cljs projects you often have multiple runtimes running simultaneously across different browsers, tabs, and devices. Calva automatically connects to one runtime initially and lets you switch between them. It also detects when runtimes connect or disconnect.

Available runtimes#

Use the command Calva: Select Shadow CLJS Runtime to see all runtimes that are currently connected to shadow-cljs. The runtimes will be presented in a VS Code quick-pick menu. The status bar will also display the active runtime, and clicking this indicator will open the runtimes menu.

Switching runtimes#

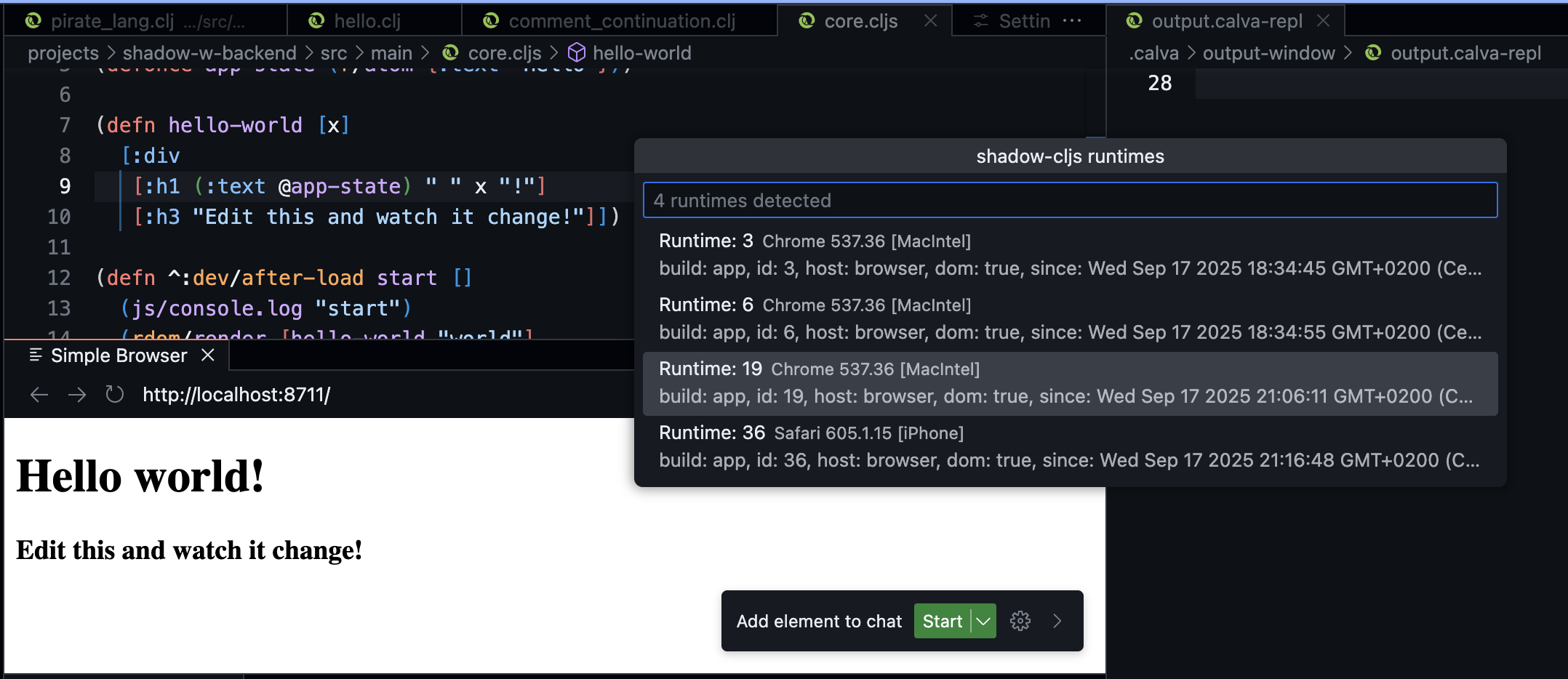

The Calva: Select Shadow CLJS Runtime menu will also let you select which runtime the cljs repl is connected to.

shadow-cljs-runtimes-menu

Automatic tracking of current runtime#

Calva reacts to notifications from shadow-cljs about runtimes that connect to the server:

If no runtime is connected to Calva and a new runtime connects to shadow-cljs:

  • Calva will connect to this new runtime

If Calva is connected to a runtime that disconnects from shadow-cljs:

  • Calva will have no connected runtime. Even if there are more runtimes connected to shadow-cljs, you'll need to initiate a connection and select a new runtime manually.

Reload scenarios supported

Note that this means that if you have the app running in browser tabs A, B, and C, with Calva connected to A, and you reload browser tab A:

  • Calva will “reconnect” to A**

But if you just close A:

  • Calva will not automatically connect to B, nor C**

And if you, while disconnected, start the app on the iPhone D:

  • Calva will connect D**

Code hot reload

Also note that the connection we're talking about here is Calva's connection to the app's REPL. shadow-cljs hot reloading of code when a file is saved always happens in all runtimes for all apps that are built from the code of that file. Calva is not involved in this mechanism.

shadow-cljs in full stack projects#

shadow-cljs is a bit special in regards to Calva REPL connection. Mainly because you can start shadow-cljs and its nREPL server in two ways:

  1. Using the shadow-cljs npm executable
  2. Via the Clojure REPL in your Leiningen or deps.edn project

These options show up as project types when connecting or jacking in:

  1. Project type: shadow-cljs
  2. Project type: deps.edn + shadow-cljs or Leiningen + shadow-cljs

The technical difference here is whether you let shadow-cljs start clojure/Leiningen (the first option) or if you let Calva do it (the second option). If you let Calva do it, Calva will then start the shadow-cljs watcher from the Clojure process. From a usage perspective the two approaches will result in different channeling of shadow-cljs output, e.g. test runner results. With the first option (the shadow-cljs project type), shadow-cljs output will be channeled to the Jack-in terminal. With the deps.edn/Leiningen option, that output will be channeled to the Output/REPL window.

See shadow-cljs + Clojure with Calva: The basics for some more discussion on how the REPL connection works.

shadow-cljs and clojure aliases

The shadow-cljs project type will not prompt you for any aliases found in the deps.edn file. Usually you should provide such aliases in shadow-cljs.edn like :deps {:aliases [...]}. If, for whatever reason you can't provide the aliases that way, you can configure a Custom REPL Connect Sequence and provide the aliases as menuSelections -> cljAliases.

Leiningen + shadow-cljs middleware issue

Please note that for Leiningen, the command line dependency injection of the shadow-cljs nrepl middleware doesn't work. You need to add it to your project.clj:

:repl-options {:nrepl-middleware [shadow.cljs.devtools.server.nrepl/middleware]}
